A low-profile angle stop is an L-shaped valve installed where the supply line connects with a fixture. These valves are commonly installed beneath sinks, behind toilets, and near appliance hookups. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. This makes repairs and replacements faster and less disruptive.
Angle Stops
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. They are easier to operate and commonly provide longer service life. When an angle stop becomes hard to turn, replacement can prevent water-damage risk and make future service easier.
Important Points
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- Most Angle Stop Valve units are compact, often 3–6 inches tall, and redirect water at a right angle.
- Quarter-turn designs are now preferred for reliability and faster shutoff.
- Any valve that sticks should be replaced before it causes larger water problems.

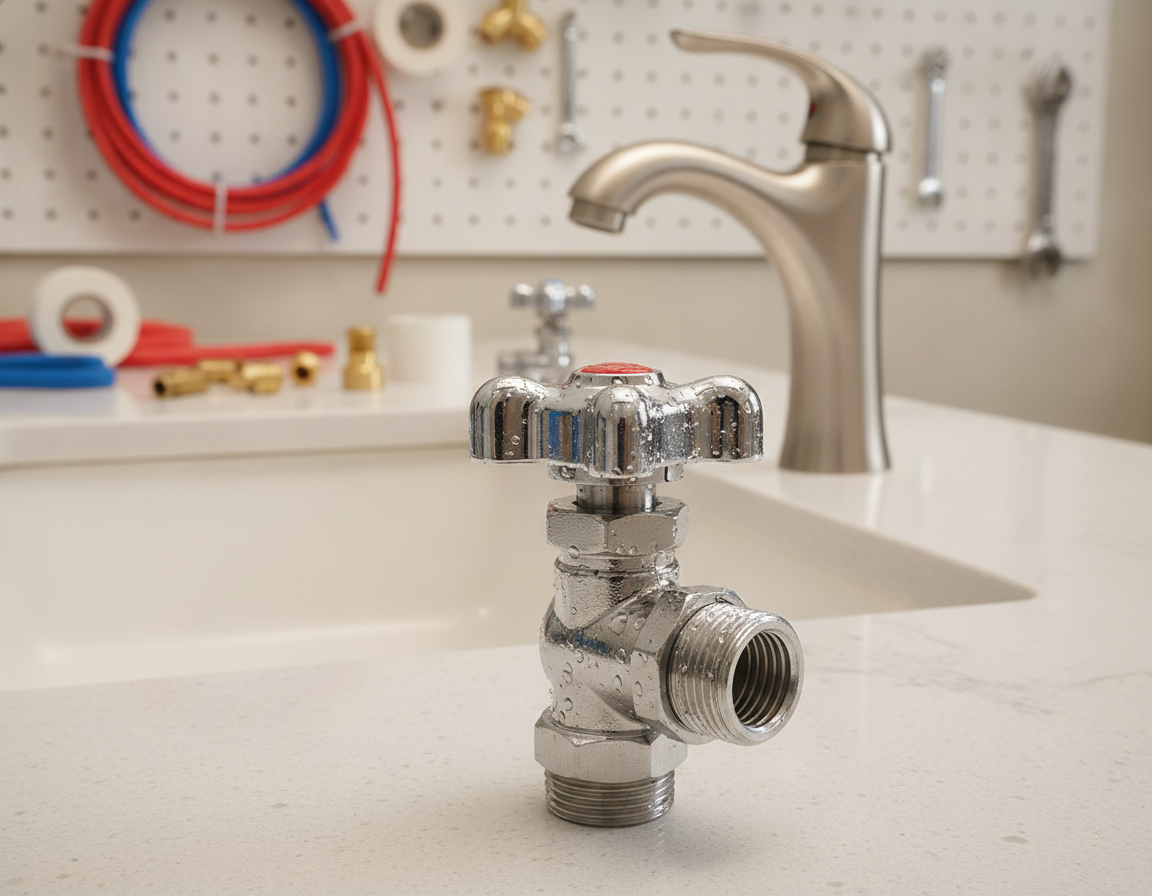

What Is An Angle Stop And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance contained.
Angle Stop Definition Explained
An angle stop is a 90-degree valve placed at the fixture supply. Angle Stop Valves come in several styles, including older multi-turn stem designs and newer quarter-turn ball designs. The Plumbing Angle Stop fits neatly under sinks and behind toilets while saving space.
Where Angle Stops Are Installed In A Typical Home
Plumbing Angle Stops are most often installed below bathroom vanities and kitchen sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.
Homeowner Benefits Of Angle Stops
A major advantage of an Angle Valve For Sink is fixture isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Convenience is another key benefit. Angle Stops Plumbing are easy to reach, helping reduce repair time and inconvenience. Turning the valve periodically helps keep it from sticking. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
Difference Between Angle Stop And Angle Seat Valve
Household angle stops serve low-pressure potable water lines. They are designed for sinks, toilets, and common appliances. The industrial Angle Seat Valve is different. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.
How To Choose From Different Types Of Angle Stops
Choosing the right angle stop for a home project means considering material, operation, connection type, and special features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.
Materials
Brass is widely used as the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Valve Operation Styles
Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They provide quick shutoff, low torque, and resistance to mineral buildup, making them a top choice for frequent use and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.
Angle Stop Connection Types
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Useful Special Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. They use an air chamber or piston to absorb pressure shock from quick-closing fixtures and reduce pipe banging. For coastal or humid environments, choose a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some labels specify 3/8 COMP for compression outlets. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.
Common Home Placement
Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.
Lead-Free Code Notes For Drinking Water
In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors must follow local codes and provide test certifications and warranties to support compliance.
Industry Trends And Recommended Standard
Modern Angle Stops commonly feature quarter-turn ball-style operation. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.
Practical Checklist For Selection
- Check Valve Markings before buying so the inlet type and outlet size match your system.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.
Installing And Replacing Angle Stops With Tools Steps And Best Practices
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. The main usually needs to be closed only when the existing stop is damaged. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always relieve pressure by opening a downstream faucet, and keep towels plus a bucket nearby.
Before starting, gather all needed tools and supplies. Common tools include an adjustable wrench, a backup wrench, a tube cutter, and a deburring tool. Emery cloth for copper, PTFE tape for threaded joints, a marker, and a flashlight are also useful. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil can help with stuck fittings, while a heat shield is useful around sweat connections.
Checklist:
- Adjustable wrench plus backup wrench
- Clean-cutting and deburring tools
- PTFE tape plus marking pen
- Push-fit angle stop and PEX stiffener
- Spare ferrules, nuts, penetrating oil, and towels
Each connection type requires its own installation method. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop connections need careful preparation and heat control. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. Once the joint cools, wipe away flux residue and inspect the solder bead. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.
Several common mistakes can cause leaks or early valve failure. Over-tightening compression nuts can deform ferrules and cause leaks. Never reuse a damaged ferrule; cut back the pipe and install a new ferrule when needed. Do not solder near heat-sensitive seals unless they are protected or removed. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Common Angle Stop Issues And Fast Fixes
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Stem Or Handle Leaks
Stem seepage in older multi-turn valves often comes from a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.
Stuck Valves
Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating product such as WD-40 for about ten minutes may help. Gently rocking the handle back and forth may free the valve. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.
Leaks At Compression Joints
A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.
When To Upgrade
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Quick Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- For stuck valves, apply Penetrating Oil and use gentle back-and-forth motion.
- For compression leaks, reseat the ferrule or cut back the pipe and install a new ferrule.
- When valves repeatedly freeze, leak, or stick, upgrade to quarter-turn stops.
Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Summary
The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
When installation feels uncertain, hiring a licensed plumber is the safer option. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also follows best practices in Angle Stops Plumbing for modern residential installations.
